Name: 2030 single-head engraving machine
SKU: 0



-- JINAN M-BRILHAR
FORNECEDOR GLOBAL DE EQUIPAMENTOS CNC DE ALTA QUALIDADE

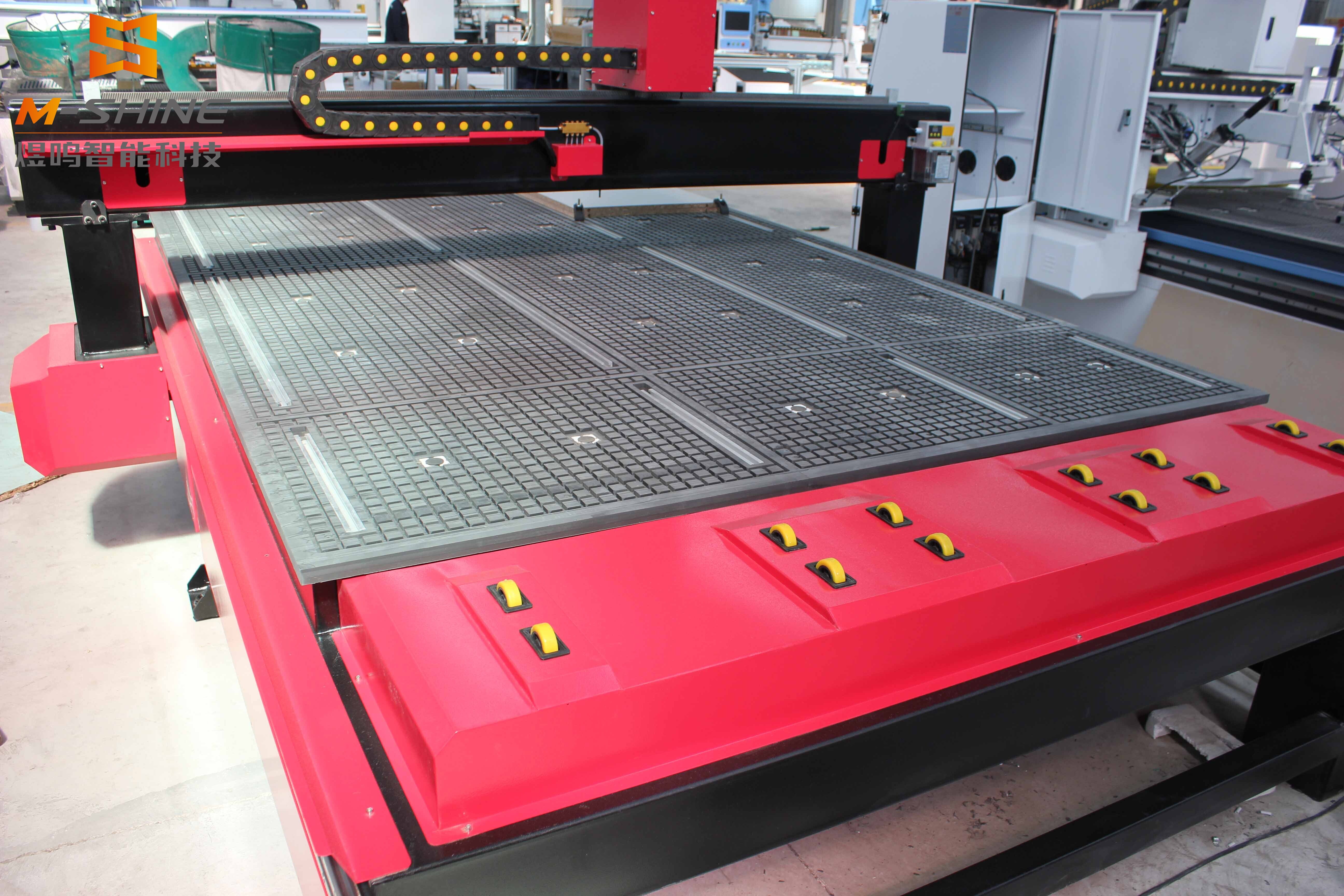

2030 single-head engraving machine

Marca：JINAN M-SHINE

Modelo:M2030

Categoria：Router CNC

Preço:5660$

Faixa de preço：4990~5660$

Termos de pagamento: T/T/Visa/Mastercard/American Express/Discover cards

Capacidade de fornecimento: 200 conjuntos por mês

OBTER UM ORÇAMENTO

ENVIAR EMAIL

VANTAGENS DO PRODUTO

● 1-2 dias de manuseio e 7-30 dias de envio
● Garantia de reembolso de 30 dias para sua compra
● Suporte técnico vitalício gratuito para usuários finais e revendedores
● Online (PayPal, Trade Assurance) / Offline (T/T, Cartões de Débito e Crédito)

1 Made with leadshine 758 hybrid servo motor, it has the characteristics of high speed and efficiency. 2 Adopting a heavy-duty body and undergoing quenching treatment, the machine operates more stably. 3 The processing area of the large bed body allows for better utilization of the board material 4 7.5KW adsorption pump has strong adsorption force and high stability of processed products

Contactar-nos

Descrição do produto

Jinan m-shine features of wood carving cnc router machine :

1.High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.

2.Y axis with double Leadshine stepper motor and driver, moving stably.

3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.

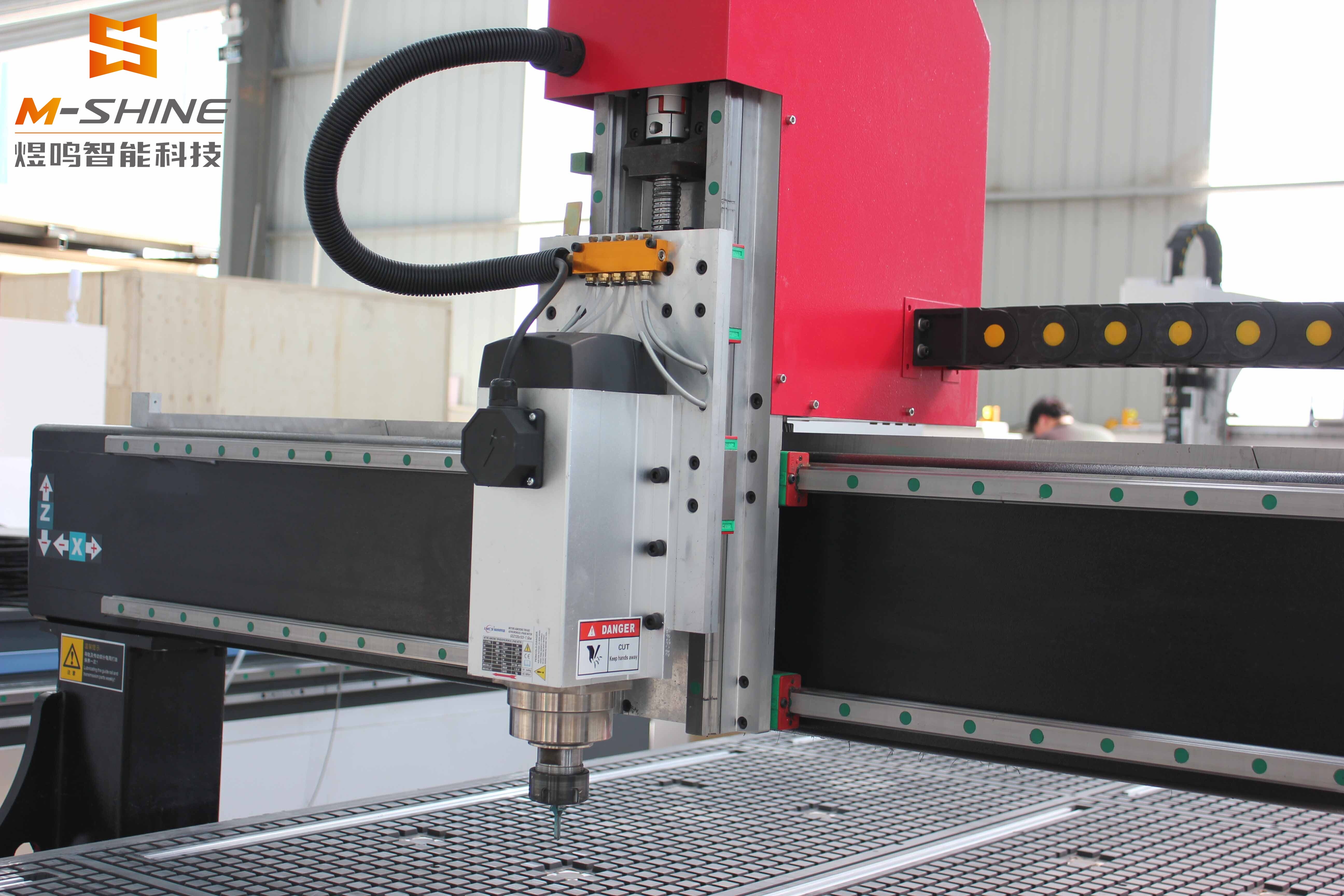

4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .

5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

low price machine cnc router carving machine for wood furniture

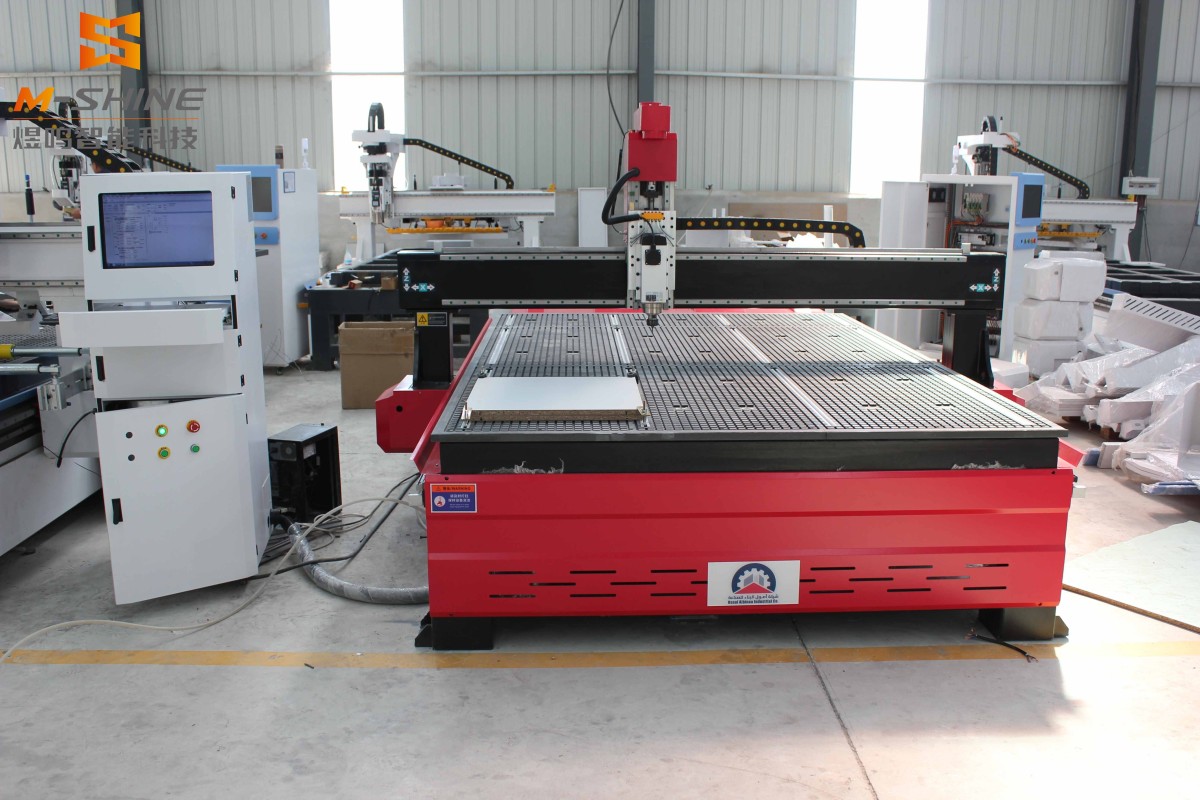

Machine Picture

Machine Configuration

Technical Parameters
Working Area(XYZ)	2000MM3000MM200MM
Spindle Power	6KW Air Cooling Spindle
Motor	leadshine 758 hybrid servo motor
Control System	Nc Studio control system
Inverter	Shenzhen E&T 7.5KW inverter

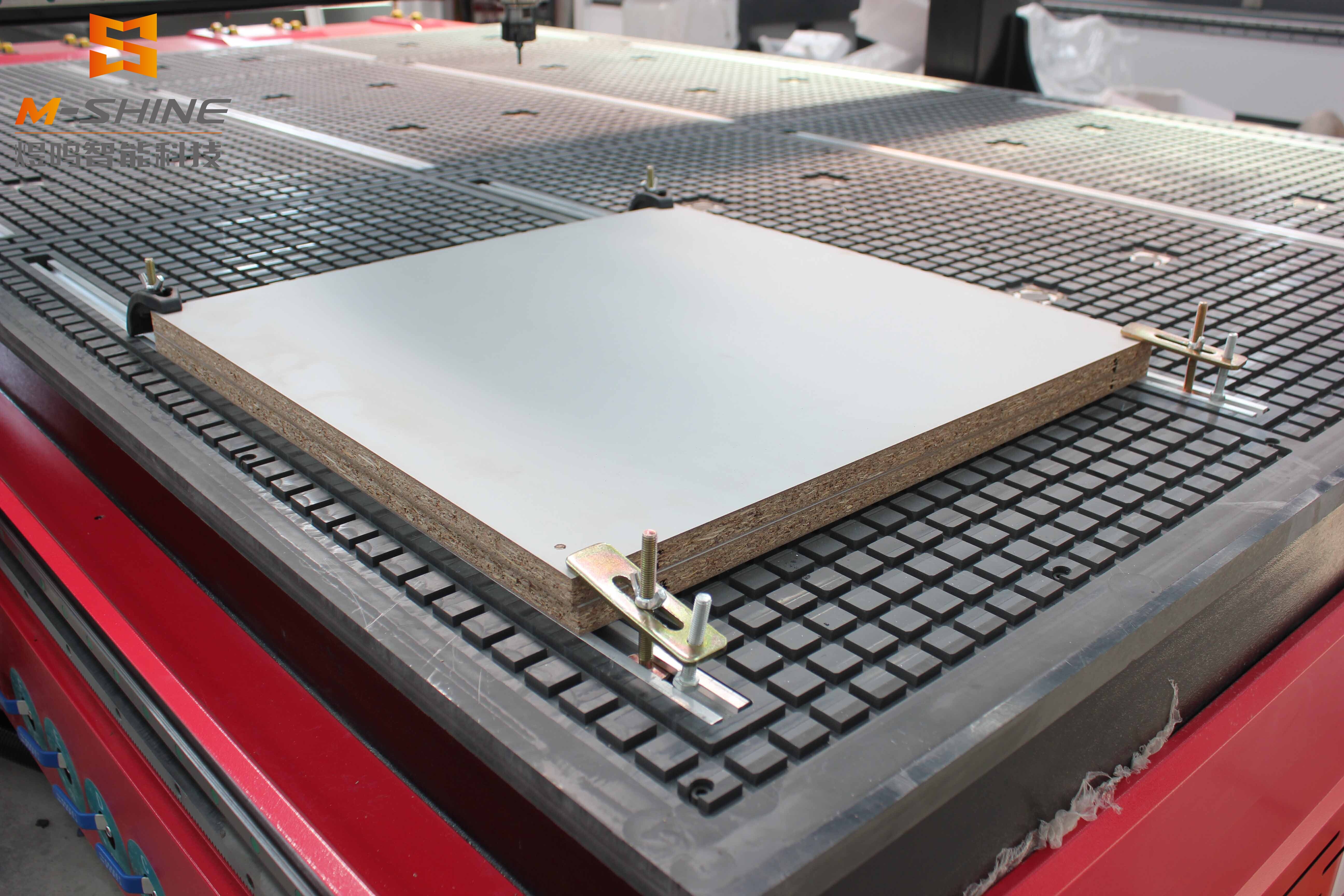

Machine Table	PVC pipe connection vacuum machine table
Adsorption pump	Water circulation 7.5KW Vacuum Pump,( Strong adsorption force, high stability when processing products)
Dust Collector	Cylinder-separated single reinforced dust collector,3.0KW Dust Collector with two bags
Oil System	Automatic lubrication +Volumetric oil drain

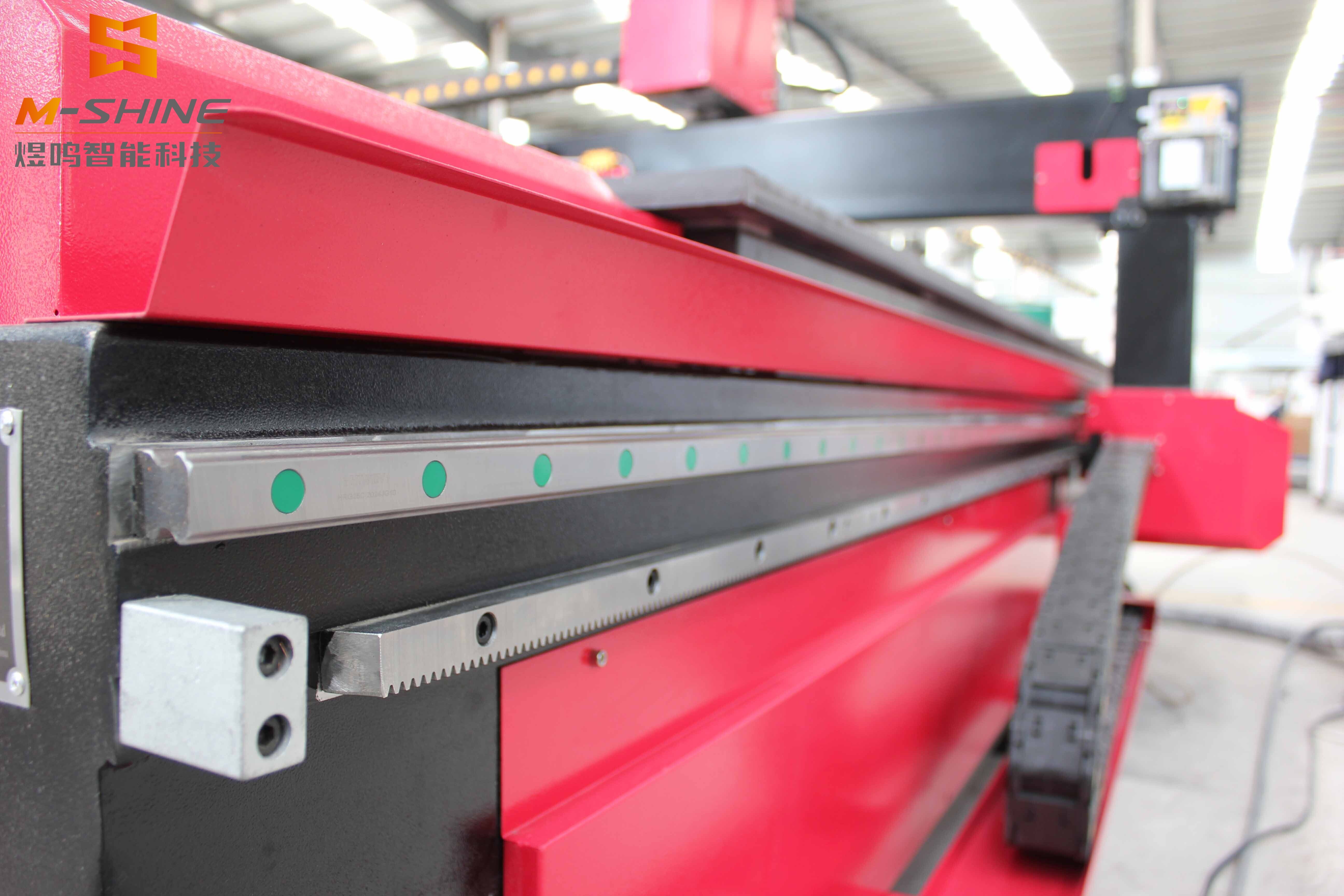

The transmission	Genuine original HIWIN 25 Square Rail,1.5M rack.
Slider	Genuine original 25 slinder
Ball screw	TBI original 2510 Ball screw
Cable	Highly flexible shielded towline cable
Limit	Dedicated to the forward and reverse direction of the wood cutting router
Reducer	Japan Shimpo reducer
Position	3+2 cylinder positioning
Cylinder	Huadeli good quality cylinder
Electrical components	CHNT Electrical components
Toolsetting method	Automatic tool setting
Toolsetting method	Automatic tool setting
Positioning	3+2 Automatic Positioning cylinder
Automatic unloading	Automatic unloading
Dust removal method	Spindle automatic partition type integrated dust removal and secondary dust removal with pusher
Voltage	380V
Net Weight	2000KG
Gross weight	2200kg
Wooden Box	We Provide Standard Export Wooden Box
Warranty	1 Year
Optional parts	Software in CD, Controlling Card (PCI card), Engraving And Cutting Tools, Allen Keys, Wrenches for Collet locknut, Data Wire, Power Line, Brush, Spanner and Clamp. (These tools all free to you)
Optional parts

FAQ.

Jinan m-shine Brand CNC Panel Saw, providing various size and models. With 13 years experience , we accpet ODM and OEM according to requirements. Besides, we can suggest the suitable woodworking production line based on customer's factory and personnel situation.Q1: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q1: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?

Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?

For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
